• Amazing Features – And Amazingly Compact
• Web Interface with Video Proxies
• Automatic Format and Frame Rate Conversion
• From SD to 4K, and Everything In-between
• 4K support as a quad cable frame sync
• Video Proc Amp and Color Correction
• Crop and Scale
• Audio Channel Swap and Level Adjust
• SFP ports for HDMI, Fiber, Composite, or additional SDI I/Os

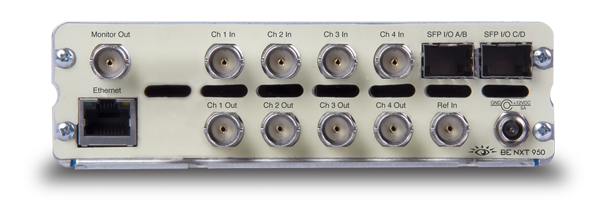

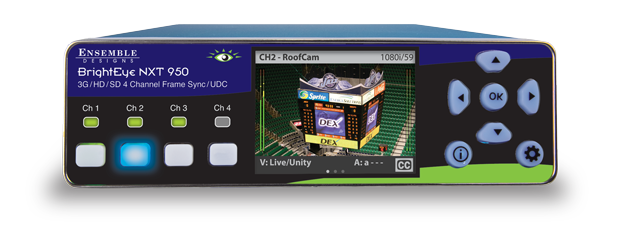

• Front Panel Live Monitor
• Monitor Pre- and Post-Processed Signals

Description

The new BrightEye NXT 950 Frame Synchronizer packs a lot of features in a tiny package. Frame Synchronization and Format Conversion, with 16 channels of embedded Audio. The NXT 950 has four independent frame synchronizers. Each supports automatic input format detection and conversion to desired output format. Adjust video and chroma gains with the built-in Proc Amp. Color Correct to compensate for input material or to match projectors and monitors. Adjust levels and swap/mix channels in Embedded Audio. Even embedded surround sound (Dolby, AC-3) is synchronized from input to output.

Control the Frame Syncs and monitor each channel’s input and output from the front panel, or through the interactive Web interface. Rackmount three NXT 950s in a single RU for the ultimate processing density.

For seamless support of HDMI sources check out the NXT 910 with HDMI inputs and SDI outputs.

Specifications

Serial Digital Inputs
Number: Four
Type: 270 Mb/s SD SDI SMPTE 259M, 1.485 Gb/s HD SDI SMPTE 274M, 292M, 296M, 2.97 Gb/s HD (3G) SDI SMPTE 424M, 425M
Impedance: 75 Ohms
Return Loss: > 15 dB
Cable Length: 300 meters for 270 Mb/s, 100 meters for 1.485 Gb/s, 70 meters for 2.97 Gb/s
Cable EQ Automatic

4K Inputs
Number: One

Serial Digital Outputs
Number: Four

4K Outputs
Number: One

Monitor Output: One
Type: 270 Mb/s SD SDI SMPTE 259M, 1.485 Gb/s HD SDI SMPTE 274M, 292M, 296M, 2.97 Gb/s HD (3G) SDI SMPTE 424M, 425M
Impedance: 75 Ohms
Return Loss: > 15 dB
Cable Length: 300 meters for 270 Mb/s, 100 meters for 1.485 Gb/s, 70 meters for 2.97 Gb/s

SDI Standards Supported – for both Input and Output
1080i 50, 59.94 or 60 Hz, SMPTE 274M -4,5,6
720p 50, 59.94 or 60 Hz, SMPTE 296M -1,2,3
1080p 23.98, 24 or 25 Hz, SMPTE 274M -9,10,11
1080p 50, 59.94, 60 Hz, SMPTE 424M, 425M, Level A
1080sF 23.98, 24 or 25 Hz, RP211 -14,15,16
625i 50
525i 59.94

Standards:
1080i 50, 59.94 or 60 Hz, SMPTE 274M -4,5,6
720p 50, 59.94 or 60 Hz, SMPTE 296M -1,2,3
1080p 23.98, 24 or 25 Hz, SMPTE 274M -9,10,11
1080p 50, 59.94, 60 Hz, SMPTE 424M, 425M, Level A
1080sF 23.98, 24 or 25 Hz, RP211 -14,15,16
625i 50
525i 59.94

SFP (Small Format Pluggable) Interfaces:
Number: Two
Ports: HDMI: One per SFP
SDI, Fiber: Two per SFP
IP Encapsulate (SMPTE 2022, and more): One per SFP
Usage: Assignable to Channel Input or Output
As Input: in place of SDI or HDMI
As Output: in addition to SDI

Frame Synchronizers
Number: Four
Range: Infinitely adjustable in H and V

Format Conversion
Integrated with Frame Synchronizer
Automatic conversion from any input to configured output format
Audio Synchronization
Sample Rate Conversion of Embedded PCM Audio
SDI Inputs Supports 16 channels
HDMI Inputs Supports 8 channels
Re-Synchronization of encoded Surround Sound Dolby-E, Dolby-D, AC-3 Automatically detected

Reference Input
Number: One
Type: 1 V P-P Composite Video, PAL or NTSC or Tri-Level Sync
Impedance: 75 Ω
Return Loss: >40 dB

Ethernet Control
Type: RJ-45
Speed: 10/100 Mb/s
Protocols: HTTP, TCP/IP

General Specifications
Size: 5.63” W x 1.65” H x 6.75” D (143 mm x 42 mm x 172 mm) including connectors and flange
Weight: 1 lb 12oz
Power: 12 volts, 35 watts (100-230 VAC modular power supply)
Temperature Range: 0 to 40° C ambient (all specs met)
Relative Humidity: 0 to 95%, non-condensing
Altitude: 0 to 10,000 ft.
