9600 3G / HD / SD Embedder, Disembedder and Data Inserter

0원

해인테크

9600 3G / HD / SD Embedder, Disembedder and Data Inserter

  • Audio embedder or disembedder for 3G, HD or SD signals
  • Handles 8 AES streams/16 channels
  • Analog audio I/O
  • In-line processor for embedded audio

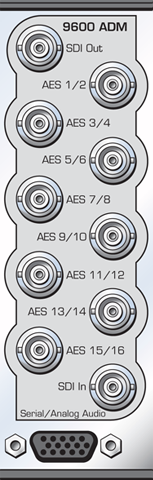

9600_Front.png 9600_Rear.png

The 9600 module is a sixteen-channel audio embedder or disembedder for 1.5 and 3 GB/s high definition video signal or 270 Mb/s standard definition signals. Eight AES ports automatically configure as inputs or outputs depending on if the module is configured as mux or demux. Additionally, four channels of analog audio are supported.

Configurable Mux or Demux

When configured as a multiplexer, the 9600 has one serial digital video input and eight AES audio inputs. These eight AES streams are embedded into the video stream. AES inputs are sample rate-converted, allowing the use of asynchronous audio. The output of the module is a digital stream that contains the original video signal and eight AES pairs, or sixteen channels.

When configured as a demultiplexer, audio signals present in the incoming video signal are extracted and delivered as standard AES digital audio streams.

The 9600 includes a full-featured, sixteen-channel audio mixer. The channel swap and shuffle capability allows you to completely rearrange and remix audio channels. It provides precise control over audio level, with up to 12 dB of gain to compensate for low level sources. Delay is adjustable up to one second.

In-Line Shuffler

Because the 9600 has simultaneous disembedding and embedding, it is an in-line processor for embedded audio. It can take embedded content, adjust levels and remap channels, and deliver it to the output as an embedded signal.

Dolby and AC-3

The 9600 can be fitted with Dolby and AC-3 encoding and decoding options. The 7615 decoding option can be fed from either an AES input or an AES stream disembedded from the incoming SDI signal. The resulting discrete surround signals are then selectable as inputs to the sixteen channel mixer/shuffler.

The 7630 Dolby encoder is fed from selected outputs of the sixteen channel mixer/shuffler. The resulting encoded bitstream can be output both on an AES output and embedded into the SDI output.

Additionally, the 9600 fully supports embedding and disembedding of encoded multi-channel bitstreams such as AC-3 and Dolby E.

LevelTrack™ AGC and Compliance Options

The 9670 LevelTrack™ Audio Automatic Gain Control software key can be added as an option. LevelTrack provides control for keeping audio levels consistent in program material.

The 9690 Audio Compliance and Monitoring Software can be added for compliance verification and archiving.

The 9600 can be configured locally or controlled and configured remotely with Avenue Touch Screens, Express Panels, or Avenue PC Software. Alarm generation, configurable user levels, module lockout, and customizable menus are just some of the tools included in the Avenue Control System.

Order Info:

• 9600 3G / HD / SD Embedder, Disembedder and Data Inserter module
• 9600-XV 3G / HD / SD Embedder, Disembedder and Data Inserter module with extra video outputs, XV configuration provides 12 channels of AES I/O and 3 SDI outputs
• 7615 Dolby E, Dolby D, AC-3 Decoder sub module and software key option. Dolby processing options incur 1 frame of delay
• 7630 Dolby E, Dolby D, AC-3 Encoder sub module and software key option. Dolby processing options incur 1 frame of delay
• 7635 Dolby D/AC-3 Encoder sub module and software key option
Dolby processing options incur 1 frame of delay
• 9670 Audio Automatic Gain Control software key option
• 9690 Audio Compliance and Monitoring Software


Features

  • Audio embedder or disembedder for 3G, HD or SD signals
  • Handles 8 AES streams/16 channels
  • Analog audio I/O
  • Dolby encoding and decoding options
  • Up to one second of delay
  • In-line processor for embedded audio
  • Audio Automatic Gain Control option
  • Built-in audio mixer
  • Phase inversion selectable on a channel basis
  • Built-in sample rate converters accept asynchronous inputs
  • 26 bit processing resolution
  • Data mux and demux as per SMPTE 337M
  • Memory registers

Specifications

Input

  • Number One
  • Signal Type HD Serial Digital 1.485 Gb/s
  • SMPTE 274M, 292M or 296M
  • HD Serial Digital 2.97 Gb/s
  • SMPTE 424M, 425M
  • SD Serial Digital 270 Mb/s SMPTE 259M
  • Impedance 75 Ω
  • Return Loss >15 dB DC to 1.5 GHz
  • Max Cable Length 270 Mb/s 300 meters
  • 1.485 Gb/s 100 meters
  • 2.97 Gb/s 70 meters
  • Automatic Cable Input Equalization

Standards Supported

  • 1080i 50, 59.94 or 60 Hz, SMPTE 274M -4,5,6
  • 720p 50, 59.94 or 60 Hz, SMPTE 296M -1,2,3
  • 1080p 23.98, 24 or 25 Hz, SMPTE 274M -9,10,11
  • 1080p 50, 59.94 Hz, SMPTE 424M, 425M, Level A
  • 1080sF 23.98, 24 or 25 Hz, RP211 -14,15,16
  • 625i 50, 525i 59.94
  • Data (SMPTE 337M)

Output

  • Number One
  • Signal Type HD or SD Serial Digital, follows input
  • Impedance 75 Ω
  • Return Loss >15 dB DC to 1.5 GHz

AES/EBU Digital Inputs

  • Number Eight (total of sixteen channels)
  • selectable as inputs or outputs
  • Type AES3id or data (SMPTE 337)
  • Connectorization Coaxial, 75 Ω
  • Bit Depth 20 and 24 bit
  • Sample Rate 30 kHz to 100 kHz (sample rate converted internally to 48 kHz)
  • Crosstalk <144 dB
  • Dynamic Range >144 dB
  • Reference Level -18 or -20 dBFS (selectable)

AES/EBU Digital Outputs

  • Number Eight (total of sixteen channels) selectable as inputs or outputs
  • Type AES3id or data
  • Connectorization Coaxial, 75 Ω
  • Bit Depth 20 and 24 bit
  • Sample Rate 48 kHz, synchronous to video output
  • Reference Level -18 or -20 dBFS (selectable)

Analog Audio Inputs

  • Number Four, selectable as inputs or outputs
  • Type Balanced
  • Connectorization 15 pin D connector
  • Impedance >15K Ω
  • Maximum Input Level 24 dBu
  • CMRR >60 dB, 20 Hz to 10 KHz
  • Quantization 24 bits, 128 x oversampled
  • Sample Rate 48 KHz
  • Reference Level -10 dBu or +4 dBu
  • Frequency Response ±0.1 dB, 20 Hz to 20 KHz
  • Crosstalk <106 dB
  • Dynamic Range >106 dB

Analog Audio Outputs

  • Number Four, selectable as inputs or outputs
  • Type Balanced, transformerless
  • Connectorization 15 pin D connector
  • Impedance 30 Ω
  • Maximum Output Level 24 dBu
  • Resolution 24 bits, 128 x oversampled
  • Reference Level -10 dBu or +4 dBu
  • Frequency Response ± 0.1 dB, 20 Hz to 20 KHz
  • Crosstalk <106 dB
  • Dynamic Range >106 dB

Dolby Metadata Inputs/Outputs

  • Signal Type Dolby metadata, RS-422, RS-485
  • Number Four, selectable as inputs or outputs,
  • share with analog audio I/O
  • Connectorization HD-15, balanced

Embedded Output (In SDI Outputs)

  • Group Assign Cascade, or replace
  • Channels Sixteen
  • Bit Depth 24 Bit

General Specifications

  • Power Consumption 10 watts
  • Temperature Range 0 to 40°C ambient (all specs met)
  • Relative Humidity 0 to 95%, noncondensing
  • Altitude 0 to 10,000 ft
