BrightEye 43 3G/HD/SD/ASI Distribution Amplifier
0원
해인테크
Description
BrightEye 43 is a reclocking distribution amplifier that can be used with standard definition video signals, 3 Gb/s and 1.5 Gb/s high definition signals, or ASI signals. The signal is equalized, reclocked and delivered to the outputs.

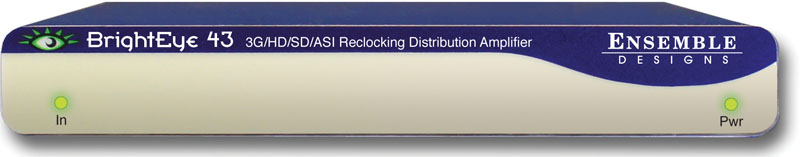

This is a simple device with no USB port and no interface to BrightEye Mac or PC software. Front panel indicators show the presence of an input sign
Specifications
Serial Digital Input
- Number: One
- Signal Type:
270 Mb/s SD Serial Digital (SMPTE 259M)
1.485 Gb/s HD Serial Digital (SMPTE 274M, 292M or 296M)
2.97 Gb/s HD Serial Digital (SMPTE 424M, 425M) - Impedance: 75 Ω
- Return Loss: >15 dB to 1.485 GHz; >10 dB to 2.97 GHz
- Max Cable Length:
300 meters for 270 Mb/s
100 meters for 1.485 Gb/s
70 meters for 2.97 Gb/s (Belden 1694A) - Automatic Input Cable Equalization

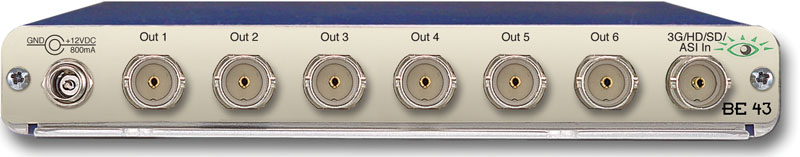

Serial Digital Output
- Number: Six (Three for ASI)
- Signal Type: 3G/HD/SD/ASI Serial Digital follows input
- Impedance: 75 Ω
- Return Loss: >15 dB to 1.485 GHz; >10 dB to 2.97 GHz
- Output DC: None (AC coupled)
General Specifications
- Size: 5.625” W x 0.8” H x 5.5” D (143 mm x 20 mm x 140 mm) including connectors
- Power: 12 volts, 7 watts (100-230 VAC modular power supply)
- Temperature Range: 0 to 40° C ambient
- Relative Humidity: 0 to 95° non-condensing
